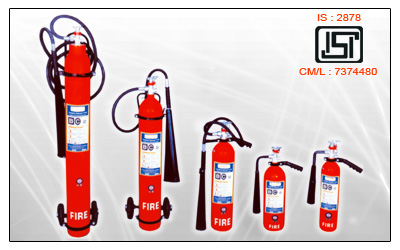

CARBON DIOXIDE TYPE FIRE EXTINGUISHERS

Suitable for 'B' and 'C' Class of Fires involving materials like Petrochemical Products, Paints, Resins, Pigment, Varnish, Gasses in the compressed form like Oxygen, Acetylene, LPG & CNG and also for fires involving electrical equipment.



CLASS B

 :

Flammable or combustible liquilds such as gasoline, kerosene, paint, and paint thinners


CLASS C

 :

Gases in the compressed form like Oxygen, acetylene, Propane, Butane and live electric


CLASS E

 : Live Electrical equipment and electronics item








MATERIAL OF CONSTRUCTIONS


 Body

 Manganese Steel

 Valve

 Forged Brass

 Hose

  High Pressure

 Ext. Finish

  Fire Red

 Trolley / Handle

  MS tube

Caution : The content of discharge should not come in contact with delicate parts of the body, there is a risk of Frost bite.
  Ventilate the area of fire after use of gas.




TECHNICAL SPECIFICATION


 Capacity in (Kgs.)

 2 3 4.5 6.5 9

 I.S. Specification Number

 2878 2878 2878 2878 2878

 Complete weight - Empty with Valve, guage, hose, & Nozzle (kgs)

 4.2 6 10 15 21

 Complete weight Charged (Kgs)

 6.2 9 15 22 30

 Filling Ratio

 0.667 0.667 0.667 0.667 0.667

 Overall Height with Valve / Trolley Handle (mm)

 565 565 660 955 1210

 Working pressure at (Kgf / cm2)

 140 140 140 140 140

 Test Pressure in (Kgf / cm2)

 250 250 250 250 250

 Dia of Cylinder (mm)

 108 140 140 140 140

 Range of discharge (meters)

 4 5 6 6 8

 Duration of discharge (Seconds Max)

 18 20 24 30 36
